Long Wall Gallery Wall Layout
Fifteen frames in four sizes, packed edge to edge into one dense block. At about 69" × 27" it runs across a long wall in one band, with the tight spacing of a salon-style display.
Frames to buy
- 1×12×12 frame with a 8×8 mat opening
- 2×8×10 frames with a 5×7 mat opening
- 6×5×7 frames with a 3×5 mat opening
- 6×4×6 frames with a 3×5 mat opening
Frame breakdown
| # | Size | Mat opening | Role |
|---|---|---|---|
| 1 | 5×7 Landscape | 3×5 | landscape 5×7 — sits below #2 at the far left |
| 2 | 5×7 Portrait | 3×5 | 5×7 — the upper frame at the far-left edge |
| 3 | 5×7 Landscape | 3×5 | landscape 5×7 — bottom row, left of center |
| 4 | 4×6 Landscape | 3×5 | landscape 4×6 — the left of the two frames under #5 |
| 5 | 8×10 Portrait | 5×7 | 8×10 — the tall frame at the upper left, and the highest point of the block |
| 6 | 4×6 Landscape | 3×5 | landscape 4×6 — the right of the two frames under #5 |
| 7 | 4×6 Portrait | 3×5 | 4×6 — the left of two small frames in the top row, above the center |
| 8 | 12×12 Square | 8×8 | 12×12 — the center anchor, sitting low in the middle; hang this one first |
| 9 | 4×6 Portrait | 3×5 | 4×6 — the right of two small frames in the top row, above the center |
| 10 | 5×7 Landscape | 3×5 | landscape 5×7 — bottom row, right of center |
| 11 | 5×7 Landscape | 3×5 | landscape 5×7 — top row, right of center |
| 12 | 4×6 Portrait | 3×5 | 4×6 — fills the gap to the right of the center |
| 13 | 4×6 Landscape | 3×5 | landscape 4×6 — leads from the center toward the right edge |
| 14 | 8×10 Portrait | 5×7 | 8×10 — the tall frame that closes the lower right |
| 15 | 5×7 Landscape | 3×5 | landscape 5×7 — the upper frame at the far-right edge |
How to use this layout

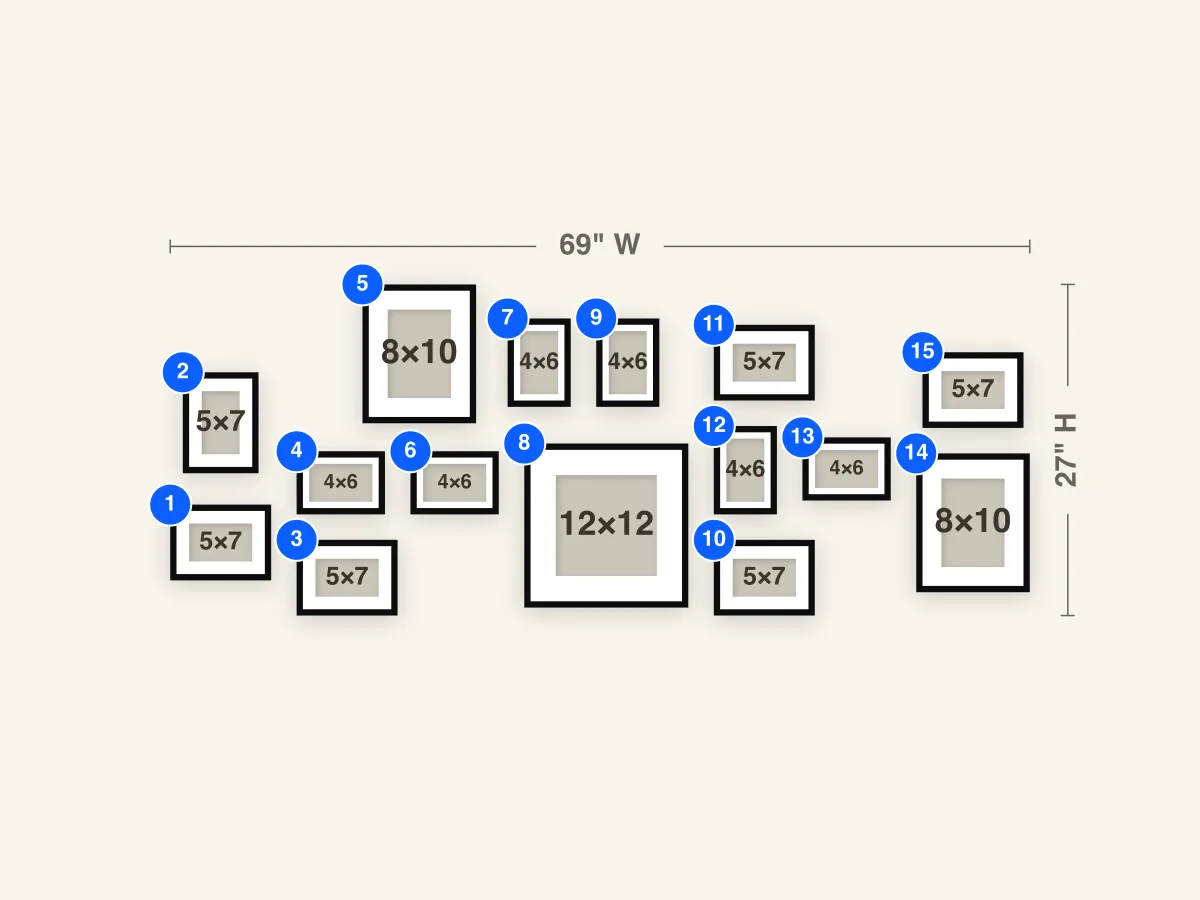

This is the layout for a long wall that feels too empty. Fifteen frames in four different sizes are fitted together tightly, with only a few inches between neighbors. The block covers about 69" wide by 27" tall, so it runs across the wall as one wide band, not as a loose cluster of separate pieces.
A 12×12 frame (#8) sits near the center. Two 8×10 frames hold the ends of the block, one high on the left (#5) and one low on the right (#14), and the smaller 5×7 and 4×6 frames, in both portrait and landscape, fill in between. Nothing lines up in a strict grid, which is what gives it the collected, layered look. If you want a wall that's evenly lined up, the Large Grid layout is a better fit.
Because the block is wide and fairly short, it works best over something long: a sofa, a bed, a sideboard, or a wide console. Aim for a block about two-thirds the width of the furniture below it. On a wall 12 feet wide, it fills the middle and leaves a few feet on each side to breathe.
Fifteen frames take a lot of photos. Pick one idea to keep the wall from feeling busy: all black-and-white, one color palette, or one subject like travel or family. Mixing frame finishes works as long as the mats stay the same color.
Install notes
Hang the 12×12 (#8) first, since the rest of the block is measured outward from it. Center the whole block on the furniture below, not on the wall. Leave 6"–10" between the lowest frame and the top of the sofa or console. The lowest edges belong to the two bottom-row landscape 5×7 frames (#10 and #3), so measure up from those.
Work out from the center: the small pair above it (#7 and #9), then the frames to its left and right. The gaps vary by a few inches, so don't try to space them by eye or with a single spacer.
With this many frames, mark every nail position before you hang anything. The Hanging Guide gives from-left and from-bottom values for all fifteen, and you can tape the marks to the wall and step back to check the block's outline. Frames this close together are easy to knock out of level, so check each one as you go.
